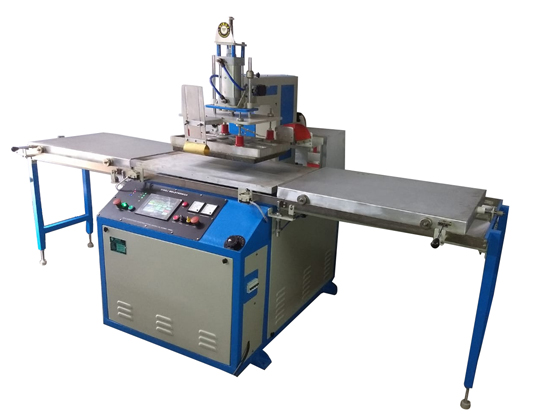

VW5/7PST
Salient features of this machine are:
• All switches and operation parameters can be set easily by one touch on the TOUCH SCREEN.
• Production speed is always displayed on the top of the touch screen (Number of impressions per minute).
• PLC system provides more control as the timers for left & right tray can be set individually on the touch screen
• Lesser Maintenance & lesser electric consumption.
• It has Multipurpose set counter system. After reaching the required quantity machine automatically stops. Touch screen also displays the total production quantity.
• Timers can be set very easily in any operation mode and the timers display the real time ramming.
• Die setting mode for levelling the die is available
• In die setting mode the heat, the heater and the flash are automatically turned off and the operator does not have to worry about it.
• Optionally, power consumption (units consumed) can be displayed on the touch screen & welding energy can be controlled / set by feeding the value on touch screen.
A highly interactive system helps in locating the problems, if there is some thing wrong in the main control circuit. The PLC System makes it easier to control the machine with 99% less break down time and almost “0%” maintenance.
Applications: - Manufacture of files, sun visors, blister to blister packaging(toothbrush), inflatables and for seat cover embossing.
Specification
| SPECIFICATION | VW5PST | VW7PST |
|---|---|---|
| H.F. Output | 5 KW | 7 KW |
| O/P Frequency (MHz) | 27.12 | 27.12 |
| I/P Power | 8.5 KVA at 415V, 50 Hz Three Phase AC | 12.5 KVA at 415V, 50 Hz Three Phase AC |
| Preseal Timer | 0-10 sec | 0-10 sec |
| Weld Timer | 0-10 sec | 0-10 sec |
| Cool Timer | 0-10 sec | 0-10 sec |
| Oscillator Valve | 7T85RB or Equivalent | 7T69RB or Equivalent |
| Arc Suppressor | Solid State | Solid State |
| Silicon Rectifier | Three Phase Bridge | Three Phase Bridge |
| Welding Capacity in Running InchesFor 2mm thick die | 150 | 200 |
| Compressed Air Requirement in C.F.M | 5 CFM | 5 CFM |
| Control Logic | PLC Based with HMI | PLC Based with HMI |
| Welding Press Stroke | 100mm | 100mm |
| Work Plate Size(inches) | 20” x 28” | 22” x 33.5” |
| H X W X D( inches) | 66x 99 x48 | 68x 108 x48 |
| Unpacked Weight (approx) | 550 Kgs. | 675 Kgs. |
Note: Due to continuous upgradation specifications are bound to change without prior notice.
